⭐ Key Highlights
- ✔️ Long Life Battery – 4000+ cycles @ 80% DOD
- ✔️ 10+ Years Design Life
- ✔️ Lightweight – Approx. 14 kg (easy handling)
- ✔️ Fast Charging Support
- ✔️ Zero Maintenance – No water topping required
- ✔️ High Efficiency – Low internal resistance
- ✔️ Eco-Friendly – No toxic materials
📊 Product Specifications
| Feature | Details |
|---|---|

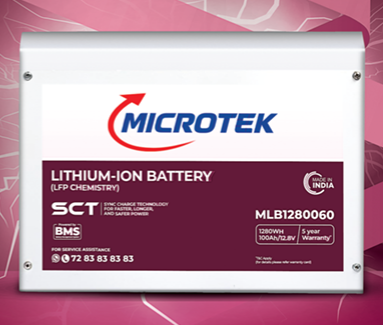

| Model | MLB1280060 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1.28 kWh |
| Cycle Life | 3500–4000 cycles |
| Design Life | 10+ Years |
| Weight | ~14 kg |
| Dimensions | 360 × 145 × 275 mm |
| Cell Type | Prismatic LiFePO4 |
| Configuration | 4S1P |
⚡ Charging & Discharge
- Charge Voltage: 14.4V
- Discharge Cut-off: 11.2V
- Standard Charge Current: 20–30A
- Max Charge Current: 50A
- Max Continuous Discharge: 100A
- Peak Discharge: 250A (1.5 sec)
🛡️ Advanced Safety (Built-in BMS)
- ✔️ Overcharge Protection
- ✔️ Over-discharge Protection
- ✔️ Over-current Protection
- ✔️ Short Circuit Protection
- ✔️ Temperature Protection
- ✔️ Cell Balancing (Optional)
🌡️ Environmental Performance
- Charging Temp: 0°C to 45°C
- Discharging Temp: -20°C to 60°C
- Storage Temp: 0°C to 45°C
- Humidity: 5%–95% (Non-condensing)
- Cooling: Natural / Forced Air
🏠 Applications
- 🔹 Solar Energy Storage (Home & Commercial)
- 🔹 Hybrid / Off-grid Inverters
- 🔹 Home UPS Backup
- 🔹 Office Power Backup
- 🔹 Telecom Systems
💡 Why Choose This Battery?
- ⚡ Faster charging than lead-acid
- 🔋 Longer backup & lifespan
- 🛠️ Maintenance-free operation
- 💰 Lower lifetime cost
- 🌱 Environment friendly
⚠️ Important Note
- Use only Lithium-compatible inverter (CC/CV charging)
- Ensure proper voltage settings for best performance
